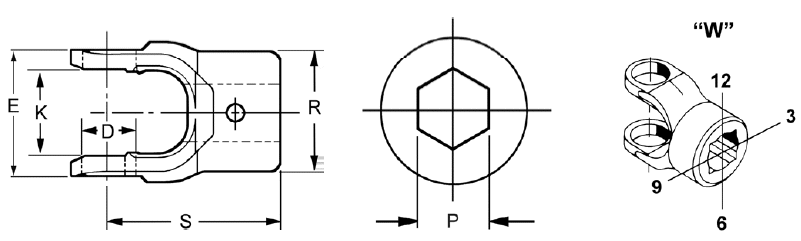

| End Yokes | |
| Series | 1000 (0.938 x 1.500 I/C) |
| (P) | 0.875 |
| (R) | 2.000 |
| (S) | 2.500 |
| General Design Type | Hex Bore | |
| U-Joint Series | 1000 | |
| Bore Diameter | P | 0.875 |
| SAE Keyway Width | X | 0.000 |
| Hub Diameter | R | 2.000 |
| Universal Joint Retaining Width | E | 1.500 |
| Universal Joint Bearing Diameter | D | 0.938 |
| Length Thru Bore | Q | 0.000 |
| Centerline of Joint to End of Hub | S | 2.500 |
| Set Screw Thread | 0.375 | |
| Keyway Location | ||
| Set Screw Location Clock position viewed at Hub End and Keyway at 12 | W | 3 |
End Yoke - Hex Bore 1000 series, 0.875 Bore, Ø2.000 hub diameter (Genuine Dana Spicer)
Part Number: 10-4-282S
$63.46
Availability: In Stock
Shipping Dimensions: 6 x 6 x 6
Weight: 1.10 lbs
Weight: 1.10 lbs
