Presently, most cardan shafts for cars and light commercial vehicles are produced with staked universal joints.

To replace such U-joints, special tooling is required in addition to our PR-6 press.

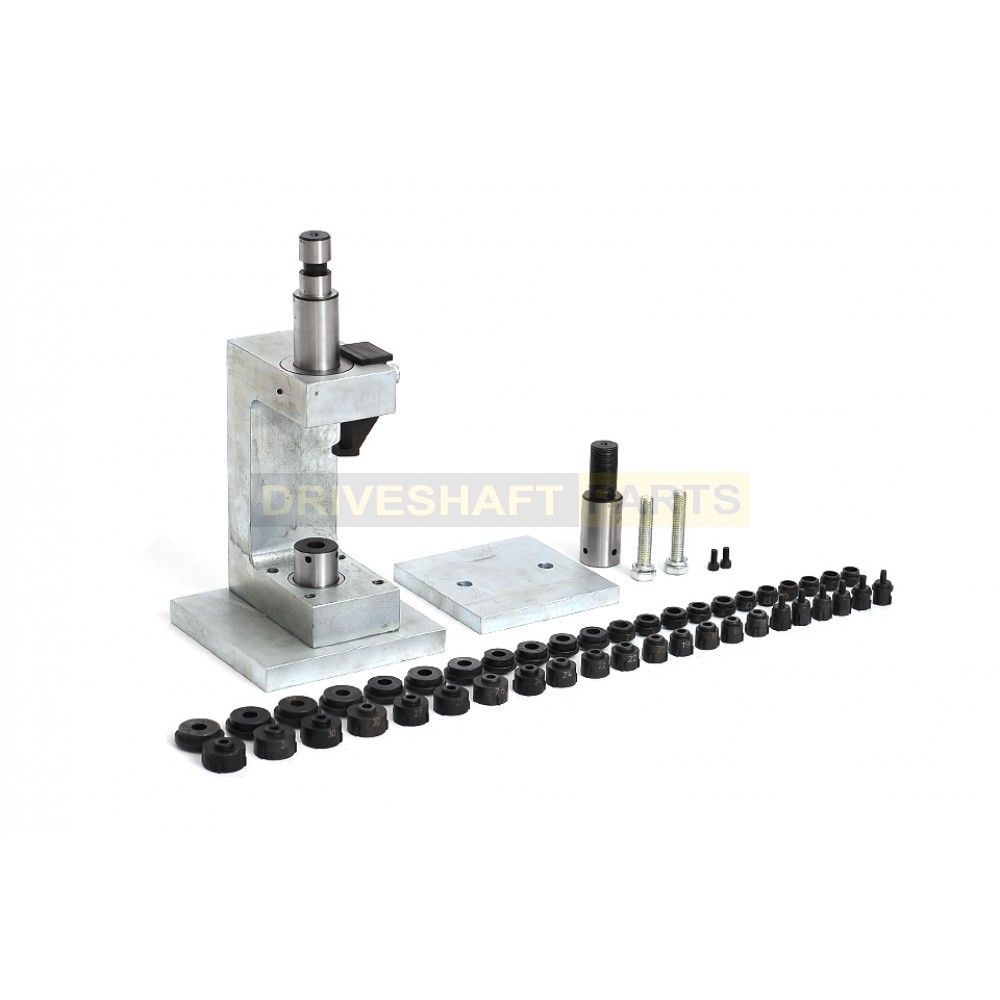

We offer a set of tooling for the PR-6 press, consisting of a base clamp and 22 sizes of center punches for all common U-joint types including steering shafts and U-joints of cars and light commercial vehicles.
Each center punch is paired with a rest to retain the cardan shaft yoke.

All the parts of tooling for staking U-joints are manufactured from quality grade steel and hardened, which guarantees long-term service and proper retaining of the U-joints in the yokes.

In addition, the tooling can be resharpened up to 50 times.

Technical specifications of the tooling:

ApplicationCars and light, commercial vehicles, steering U-joints
ContentsBase clamp for staking U-joints, 22 center-punches and 22 corresponding rests
Diameter Of U-Joint Bushing, mm х Number Of Beams15x3, 15x4, 16x3, 16x4, 17х3, 17х4, 18x3, 18x4, 19x3, 19x4, 20x3, 20x4, 22х3, 22x4, 24x3, 24x4, 27x3, 27x4, 30х3, 30x4, 31x3, 31x4










Full set of universal joint staking tools

Part Number: STACK-IN-SET

    • $2,887.50

    Availability: Out Of Stock

    Shipping Dimensions: 10 x 10 x 10
    Weight: 41.00 lbs
